Underwater signature measurement system

Underwater signature measurement system

Using single to multiple platforms, movable or fixed solutions

Polyamp has designed a series of sensors and platforms for measuring underwater signatures. The UMISS© is a family of Multi Influence Sensors Systems designed to measure Underwater Signatures.

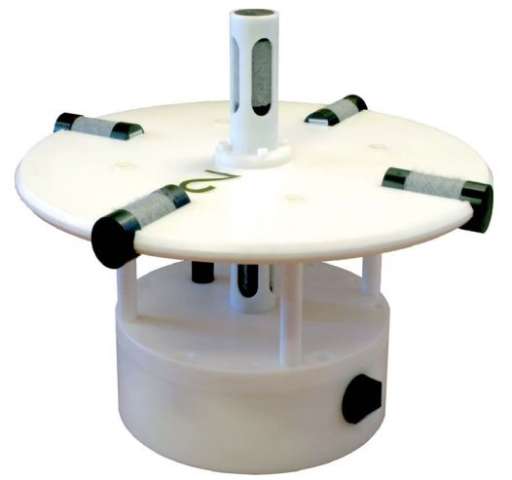

The UMISS© MkII Sea Module is in its standard configuration equipped with 3-axis magnetic, 3-axis ELFE electric and a pressure sensor. The use of acoustic sensor as well as a seismograph sensor are optional.
The signals measured by the Sea Module sensors are digitized using high precision 24 bit ADCs, then merged to a data stream with ETH UDP serial data and transmitted through a cable to the receiving module up to 100 m distance.
The UMISS platform is designed to be used as a single measuring unit or in combination with several platforms. 3 to +10 UMISS platforms can be combined as a moveable or fixed signature measurement range.
In such case a UWJB underwater Junction Box is used to merge the platforms data and tranfer via WLAN from a surface buoy or via TCP/IP cable or optical communication (combined with power) is also available.
No measured data is stored within the platform.

  • Upgrading conventional sea measurment ranges
  • Transportable sea measurment ranges
  • Surveillance, fixed or mobile equipment
  • Simulate influence mines
  • Part of a Harbour protection system
  • Environmental assessment system
    • (eg, wave, earthquake, ionospheric noise)

Polyamp UEP och ELFE Systems - important features

  • Carbon Fiber Electrodes - robust technology
  • Very low noise amplifier - High sensitivity
  • Salinity Independent - Useful for all water immediately
  • Inert Sensors - Maintenance-free without the need for Salt Bridges
  • Rapid Deployment - No Operational Delays
  • High reliability - Long service life
  • 3 Axis Platform Designs - Fast and Transport Ranges
